| 产品料号： |

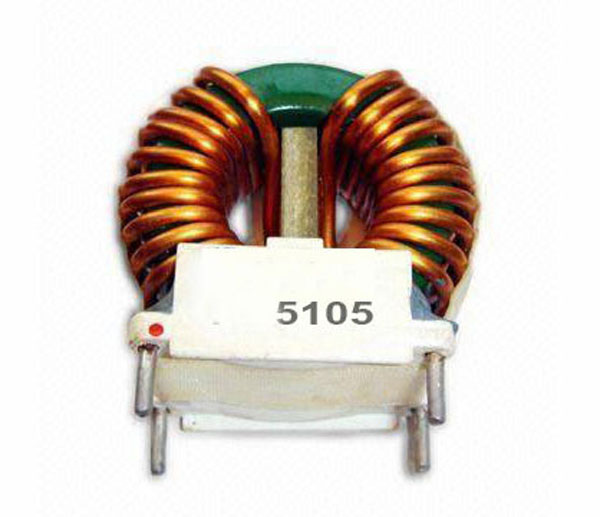

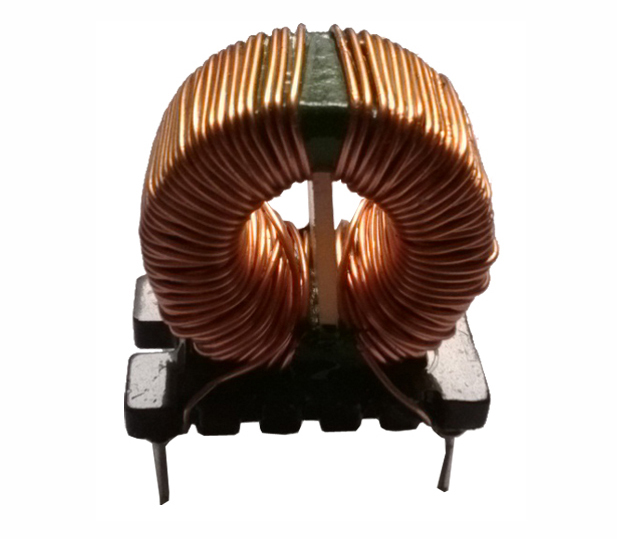

电感器，电磁线圈Inductor Coil |
-
-
- 产品说明：
FEATURE&APPLICATION:
Effective in filtering supply lines having in-phase signals
of equal amplitude
Allows equipment to meet FCC and electrical radiation
specifications
Broad frequency ranges can be filtered
Typical applications include: power line filter, suppress EMI in
switched-mode, and power supplies
Dielectric withstanding voltage rated at 2000 VAC line to line
|
PART NUMBER
|
Inductance
(mH±30% )
|
DCR
(Max Ohms)
|
Leakage Inductance
(µH) Typ
|
|
5105-7.5-1
|
7.5
|
0.306
|
81
|
|
5105-13-1
|
13.0
|
0.400
|
190.0
|
|
5105-3.8-2
|
3.8
|
0.104
|
43.0
|
|
5105-6.5-2
|
6.5
|
0.143
|
105.0
|
|
5105-1.9-4
|
1.9
|
0.042
|
20.5
|
|
5105--3.3-4
|
3.3
|
0.054
|
54.0
|
|
5105-1.5-6
|
1.5
|
0.030
|
17.0
|
|
5105-2.6-6
|
2.6
|
0.040
|
40.0
|
|
5105-0.9-9
|
0.9
|
0.016
|
11.2
|
|
5105-1.5-9
|
1.5
|
0.021
|
22.0
|
|
5105-0.7-12
|
0.7
|
0.012
|
8.0
|
|
5105-1.2-12
|
1.2
|
0.016
|
17.0
|
|
5105-0.5-15
|
0.5
|
0.008
|
10.0
|
|
5105-0.8-15
|
0.8
|
0.009
|
14.0
|
