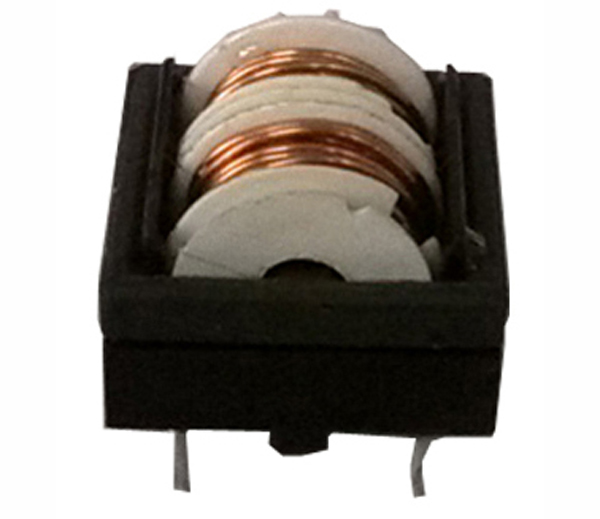

ET-24
FEATURES&APPLICATIONS
• Used in low to medium power AC-DC power supplies
• Designed for line to neutral safety clearance
• High impedance at applicable frequency
• High self-resonant frequency
• Dielectric withstanding voltage rated at 2500 VAC line to line
• Signal line filtering
|
PART NUMBER
|
TERMINAL PINS
|
Dimension in mm
|
|
A
|
B
|
C±0.5
|
D±0.5
|
E±0.5
|
F±0.5
|
FIG
|
|
ET-24-01-H
|
4
|
26
|
26
|
15
|
4
|
12
|
26
|
NO.1
|
|
ET-24-02-V
|
4
|
31
|
19
|
10
|
4
|
13
|
26
|
NO.2
|
|
PART NUMBER
|
Inductance
(mH MIN)
|
Irms
( A Max)
|
DCR
(Ohms ±20%)
|
|
ET-24-1.0
|
1.0
|
2.10
|
0.067
|
|
ET-24-1.2
|
1.2
|
2.00
|
0.082
|
|
ET-24-1.5
|
1.5
|
1.60
|
0.119
|
|
ET-24-2.2
|
2.2
|
1.50
|
0.153
|
|
ET-24-2.7
|
2.7
|
1.30
|
0.197
|
|
ET-24-3.9
|
3.9
|
1.00
|
0.294
|
|
ET-24-4.7
|
4.7
|
1.00
|
0.294
|
|
ET-24-6.8
|
6.8
|
0.80
|
0.519
|
|
ET-24-8.2
|
8.2
|
0.70
|
0.574
|
|
ET-24-18.0
|
18.0
|
0.50
|
1.271
|
|
ET-24-22.0
|
22.0
|
0.40
|
1.564
|
|
ET-24-33.0
|
33.0
|
0.40
|
1.790
|
|
ET-24-47.0
|
47.0
|
0.30
|
2.768
|
|
ET-24-68.0
|
68.0
|
0.25
|
4.024
|
NOTES:
1. ELECTRICAL SPECIFICATIONS MEASURED AT 25ºC
2. Irms - CURRENT THAT CAUSES THE TEMPERATURE TO
RISE APPROX. 40ºC ABOVE AMBIENT OF 25ºC
3. INDUCTANCE TESTED AT 10 kHz, 0.1 Vrms

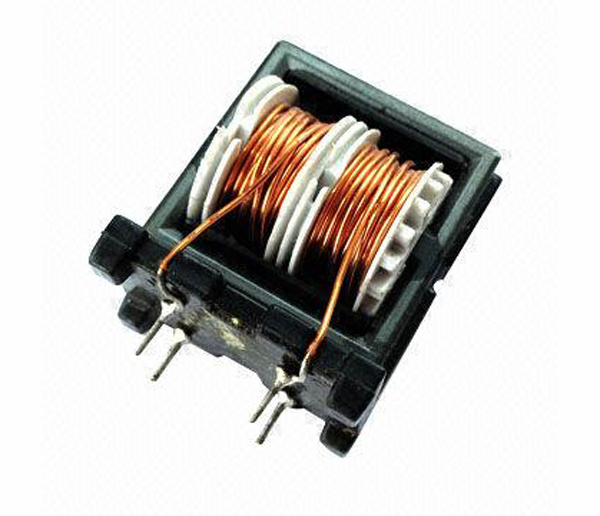

ET-28
|
PART NUMBER
|
TERMINAL PINS
|
Dimension in mm
|
|
A
|
B
|
C±0.5
|
D±0.5
|
E±0.5
|
F±0.5
|
FIG
|
|
ET-28-01
|
4
|
36
|
22
|
10
|
4
|
13
|
30
|
NO.1
|
|
PART NUMBER
|
Inductance
(mH MIN)
|
Irms
( A Max)
|
DCR
(Ohms ±20%)
|
|
ET-28-0.15
|
0.15
|
10.0
|
0.0085
|
|
ET-28-0.26
|
0.26
|
9.0
|
0.012
|
|
ET-28-0.4
|
0.4
|
8.0
|
0.015
|
|
ET-28-0.8
|
0.8
|
7.0
|
0.016
|
|
ET-28-1.5
|
1.5
|
5.0
|
0.028
|
|
ET-28-2.7
|
2.7
|
4.5
|
0.031
|
|
ET-28-3.3
|
3.3
|
4.2
|
0.041
|
|
ET-28-3.9
|
3.9
|
3.7
|
0.052
|
|
ET-28-4.7
|
4.7
|
3.5
|
0.060
|
|
ET-28-5.6
|
5.6
|
3.4
|
0.065
|
|
ET-28-8.2
|
8.2
|
3.0
|
0.090
|
|
ET-28-9.0
|
9.0
|
2.8
|
0.100
|
|
ET-28-10.0
|
10.0
|
2.5
|
0.124
|
|
ET-28-15.0
|
15.0
|
2.0
|
0.161
|
|
ET-28-18.0
|
18.0
|
1.9
|
0.228
|
|
ET-28-22.0
|
22.0
|
1.8
|
0.237
|
|
ET-28-27.0
|
27.0
|
1.5
|
0.274
|
|
ET-28-33.0
|
33.0
|
1.4
|
0.327
|
|
ET-28-47.0
|
47.0
|
1.2
|
0.469
|
|
ET-28-56.0
|
56.0
|
1.0
|
0.608
|
|
ET-28-82.0
|
82.0
|
0.8
|
0.892
|
NOTES:
1. ELECTRICAL SPECIFICATIONS MEASURED AT 25ºC
2. Irms - CURRENT THAT CAUSES THE TEMPERATURE TO
RISE APPROX. 40ºC ABOVE AMBIENT OF 25ºC
3. INDUCTANCE TESTED AT 10 kHz, 0.1 Vrms
