Description:
●Core mounted Horizontal or Vertical
● Hipot voltage：2500Vrms
● Ferrite core material
● Custom designs available
Applications:
●Rate current @40℃ TYP temperature rise
● Ideally used as common mode noise filter for TV,VCR,Switching power supply,NC machine,PC&PC related advice,measurement and control unit

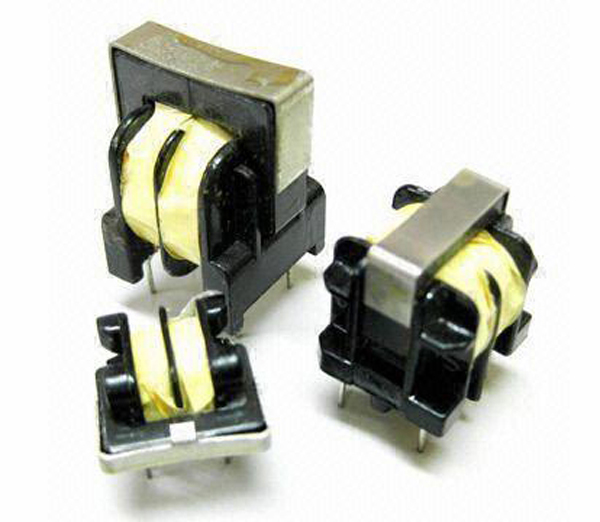

UU 9.8
|
PART NUMBER
|
L
(mH MIN)
|
Irms
(mA Max)
|
DCR
(Ohms Max)
|
Core
Mounted
|
|
UU9.8-1011ANL
|
0.1
|
3000
|
0.03
|
V/H
|
|
UU9.8-2011ANL
|
0.2
|
2000
|
0.06
|
V/H
|
|
UU9.8-5011ANL
|
0.5
|
1500
|
0.12
|
V/H
|
|
UU9.8-9011ANL
|
0.9
|
1300
|
0.16
|
V/H
|
|
UU9.8-1021ANL
|
1.0
|
1200
|
0.22
|
V/H
|
|
UU9.8-1521ANL
|
1.5
|
1000
|
0.30
|
V/H
|
|
UU9.8-2221ANL
|
2.2
|
850
|
0.40
|
V/H
|
|
UU9.8-3321ANL
|
3.3
|
700
|
0.50
|
V/H
|
|
UU9.8-4721ANL
|
4.7
|
500
|
1.60
|
V/H
|
|
UU9.8-5621ANL
|
5.6
|
450
|
0.75
|
V/H
|
|
UU9.8-1031ANL
|
10
|
350
|
1.40
|
V/H
|
|
UU9.8-1531ANL
|
15
|
300
|
2.30
|
V/H
|
|
UU9.8-2231ANL
|
22
|
250
|
3.70
|
V/H
|
|
UU9.8-2232ANL
|
22
|
300
|
2.50
|
V/H
|
|
UU9.8-3331ANL
|
33
|
200
|
4.95
|
V/H
|
|
UU9.8-4731ANL
|
47
|
150
|
6.90
|
V/H
|
①.Measure at 1KHz/0.1V
②.MAX current: The DC current at which the temperature rise is △t＝40℃TYP.(Ta＝25℃)
③.Maximum DC Resistance of each winding ④.Appearance of Vertical and Horizontal

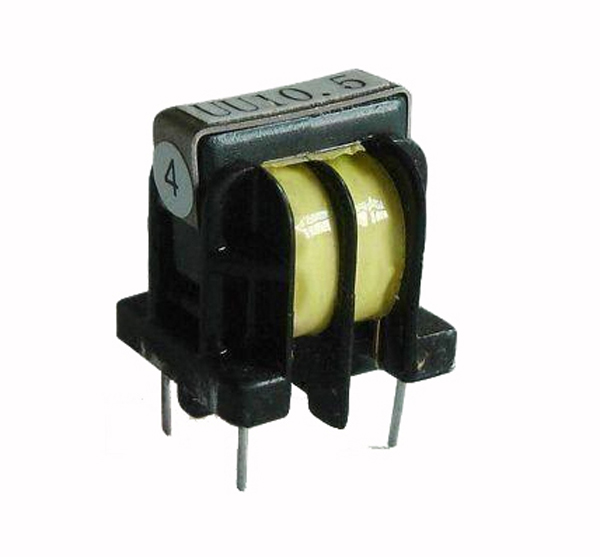

UU 10.5
|
PART NUMBER
|
L
(mH MIN)
|
Irms
(mA Max)
|
DCR
(Ohms Max)
|
Core
Mounted
|
|
UU10.5-6011ANL
|
0.6
|
3000
|
0.06
|
V/H
|
|
UU10.5-1021ANL
|
1.0
|
2200
|
0.1
|
V/H
|
|
UU10.5-1721ANL
|
1.7
|
1700
|
0.15
|
V/H
|
|
UU10.5-2021ANL
|
2.0
|
1600
|
0.16
|
V/H
|
|
UU10.5-2221ANL
|
2.2
|
1500
|
0.19
|
V/H
|
|
UU10.5-3021ANL
|
3.0
|
1300
|
0.23
|
V/H
|
|
UU10.5-3521ANL
|
3.5
|
1200
|
0.3
|
V/H
|
|
UU10.5-4021ANL
|
4.0
|
1100
|
0.35
|
V/H
|
|
UU10.5-5521ANL
|
5.5
|
1000
|
0.45
|
V/H
|
|
UU10.5-7421ANL
|
7.4
|
800
|
0.55
|
V/H
|
|
UU10.5-1033ANL
|
10
|
700
|
0.77
|
V/H
|
|
UU10.5-1232ANL
|
12
|
600
|
0.95
|
V/H
|
|
UU10.5-1931ANL
|
19
|
500
|
1.5
|
V/H
|
|
UU10.5-2031ANL
|
20
|
500
|
1.55
|
V/H
|
|
UU10.5-3031ANL
|
30
|
400
|
2.7
|
V/H
|
|
UU10.5-4331ANL
|
43
|
300
|
3.9
|
V/H
|
|
UU10.5-4531ANL
|
45
|
300
|
4.0
|
V/H
|
①.Measure at 1KHz/0.1V
②.MAX current: The DC current at which the temperature rise is △t＝40℃TYP.(Ta＝25℃)
③.Maximum DC Resistance of each winding
④.Appearance of Vertical and Horizontal

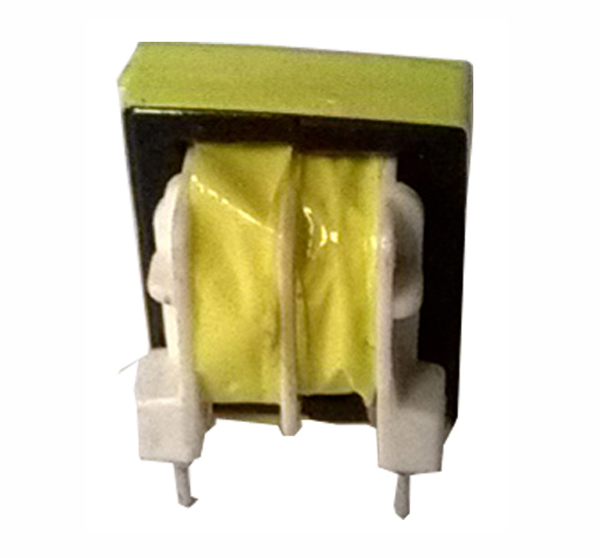

UU 16
|
PART NUMBER
|
L
(mH MIN)
|
Irms
(mA Max)
|
DCR
(Ohms Max)
|
Core
Mounted
|
|
UU16-6011ANL
|
0.6
|
4400
|
0.04
|
V/H
|
|
UU16-1021ANL
|
1.0
|
3600
|
0.05
|
V/H
|
|
UU16-2021ANL
|
2.0
|
2900
|
0.09
|
V/H
|
|
UU16-5021ANL
|
5.0
|
2300
|
0.19
|
V/H
|
|
UU16-8021ANL
|
8.0
|
1600
|
0.35
|
V/H
|
|
UU16-1031ANL
|
10
|
1500
|
0.38
|
V/H
|
|
UU16-2031ANL
|
20
|
1000
|
0.75
|
V/H
|
|
UU16-3031ANL
|
30
|
800
|
1.25
|
V/H
|
|
UU16-4531ANL
|
45
|
700
|
1.75
|
V/H
|
