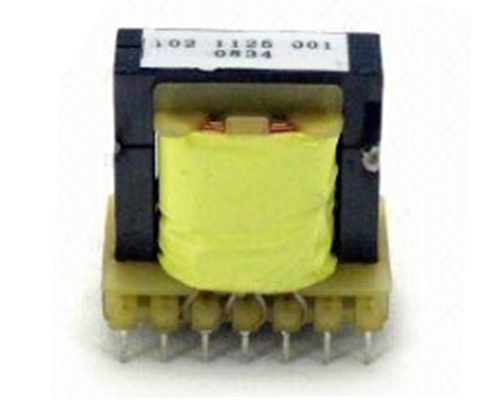

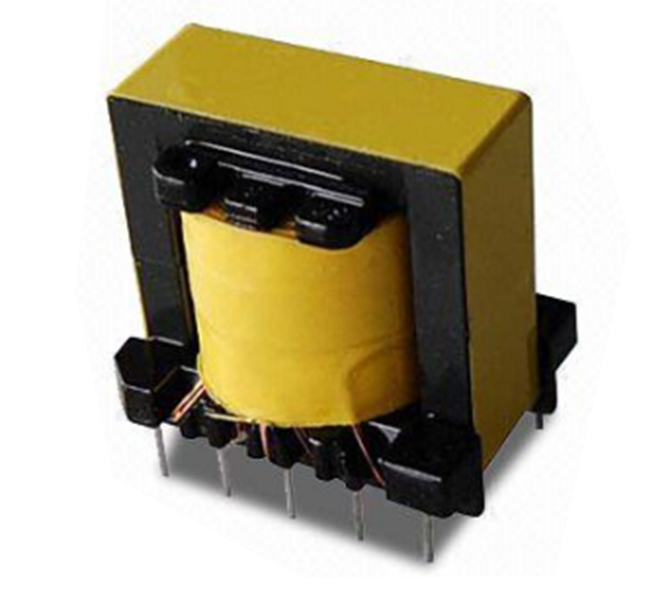

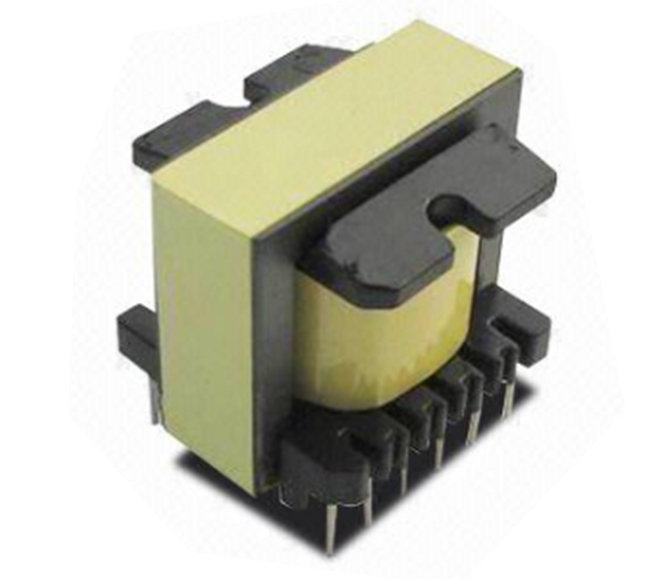

高频变压器ETD系列High Frequency Transformer ETD Series |
-
-
- 产品说明：
Description
• Core mounted Horizontal or Vertical
• Hipot voltage：2500Vrms
• Ferrite core material
• Custom designs available
Applications
• Rate current @40℃ TYP temperature rise
• Ideally used as common mode noise filter for TV,VCR,
Switching power supply,NC machine,PC&PC related
advice,measurement and control unit

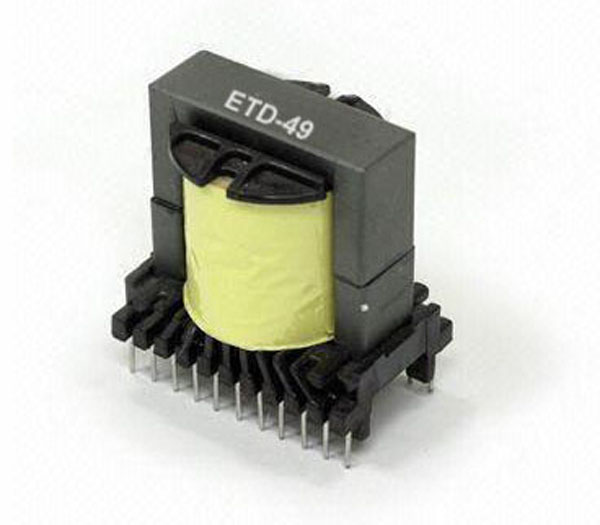

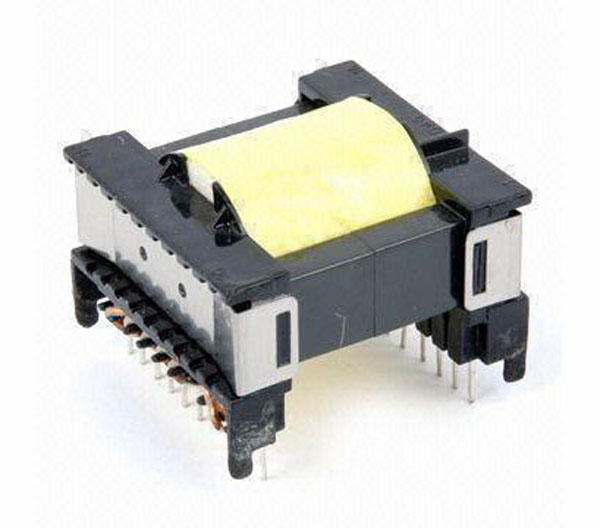

ETD 49
|
PART NO.
|
TERMINAL PINS
|
Dimensions in mm (inches)
|
|
A
|
B
|
C+/-0.5
|
D+/-0.5
|
E
|
F
|
TYPE
|
|
ETD-24
|
12
|
35.6
|
21
|
17.8
|
4
|
5.08
|
36.1
|
V
|
|
ETD-29
|
12
|
40.9
|
24
|
20.3
|
4
|
5.08
|
41.8
|
V
|
|
ETD-29
|
14
|
24.9
|
35.1
|
25.5
|
4
|
5
|
35.7
|
H
|
|
ETD-34
|
16
|
39.9
|
31.7
|
25.5
|
4
|
5
|
42
|
V
|
|
ETD-34
|
14
|
29.8
|
40
|
25.5
|
4
|
5
|
39.9
|
H
|
|
ETD-39
|
14
|
35.6
|
44.2
|
30.7
|
4
|
5
|
44.6
|
H
|
|
ETD-44
|
18
|
42
|
32
|
27.5
|
4
|
5
|
45
|
V
|
|
ETD-44
|
18
|
39.6
|
51.3
|
35.7
|
4
|
5
|
49.8
|
H
|
|
ETD-49
|
22
|
57.5
|
36
|
27.5
|
4
|
5
|
53.7
|
V
|
|
ETD-49
|
20
|
41.4
|
57.2
|
40.7
|
4
|
5
|
54.7
|
H
|
|
TYPE : H ->HORIZONTAL TYPE V ->VERTICAL TYPE
|

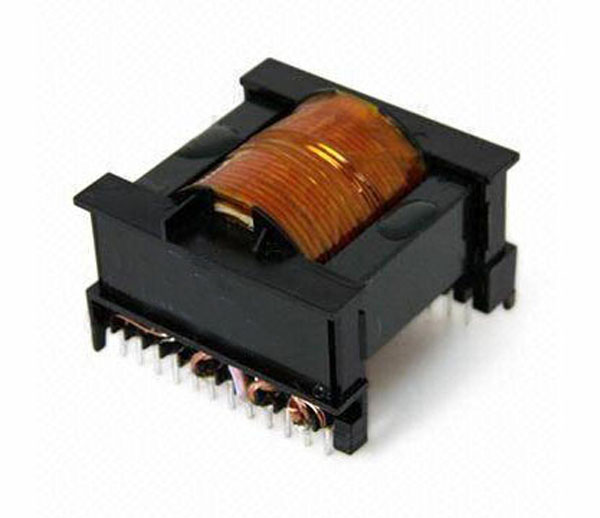

ETD 34

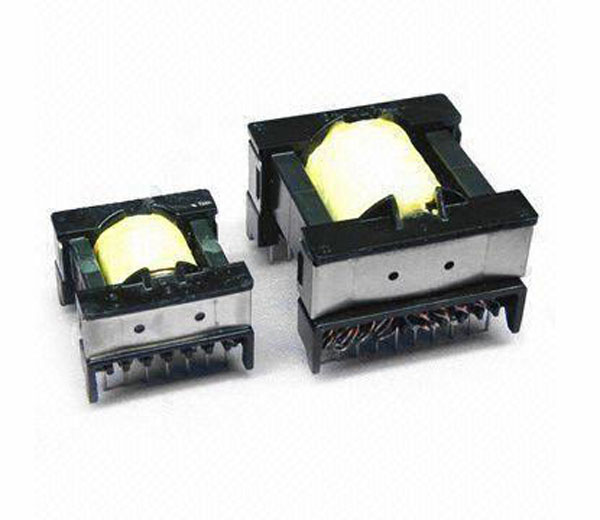

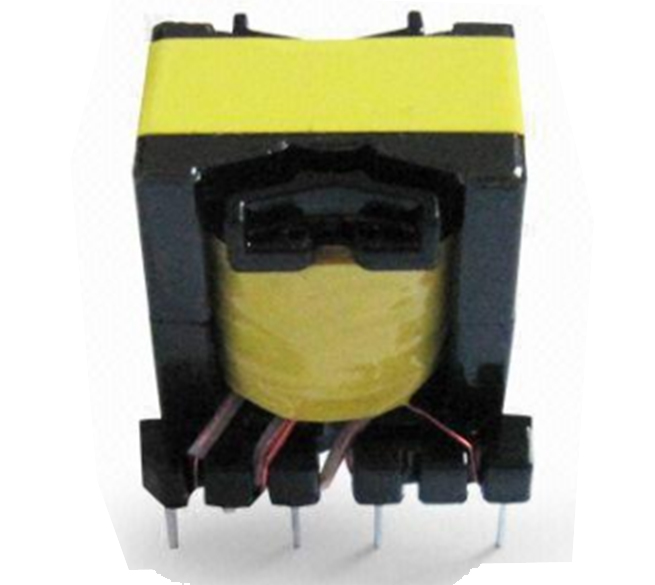

ETD 29
