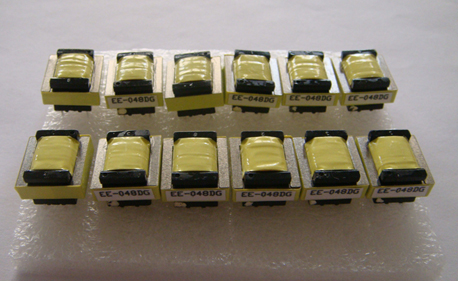

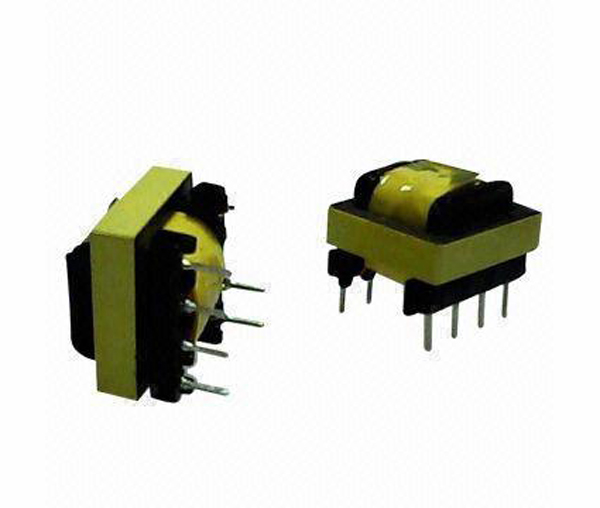

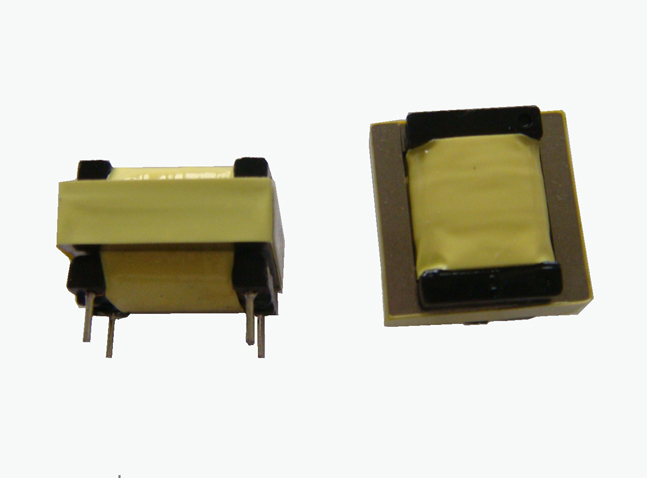

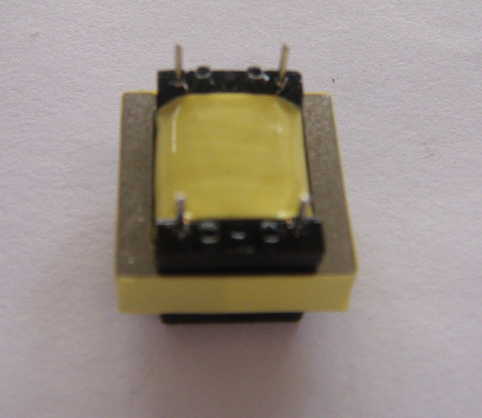

Description
• Core mounted Horizontal or Vertical
• Hipot voltage：2500Vrms
• Ferrite core material
• Custom designs available
Applications
• Rate current @40℃ TYP temperature rise
• Ideally used as common mode noise filter for TV,VCR,
Switching power supply,NC machine,PC&PC related
advice,measurement and control unit
|
PART NO.
|
TERMINAL PINS
|
Dimensions in mm (inches)
|
|
A
|
B
|
C+/-0.5
|
D
|
E
|
FIG
|
|
EFD-12
|
8
|
6
|
17
|
20
|
3.0
|
13.5
|
2
|
|
EFD-15
|
10
|
7.3
|
18.2
|
21.35
|
2.5
|
15
|
1
|
|
EFD-15
|
10
|
7.5
|
19.3
|
22.6
|
3.0
|
16.7
|
2
|
|

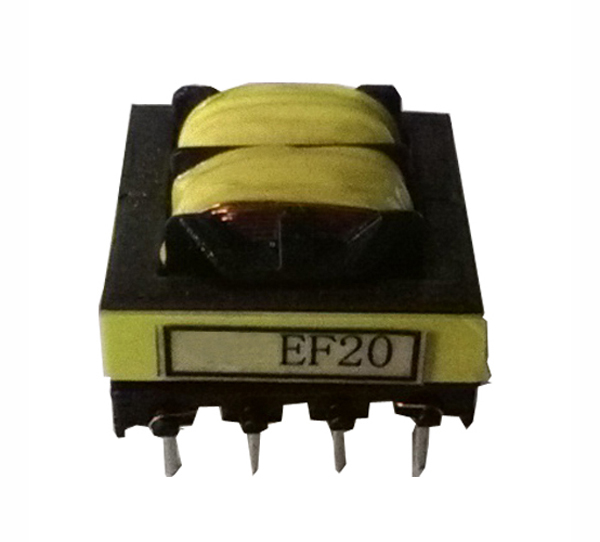

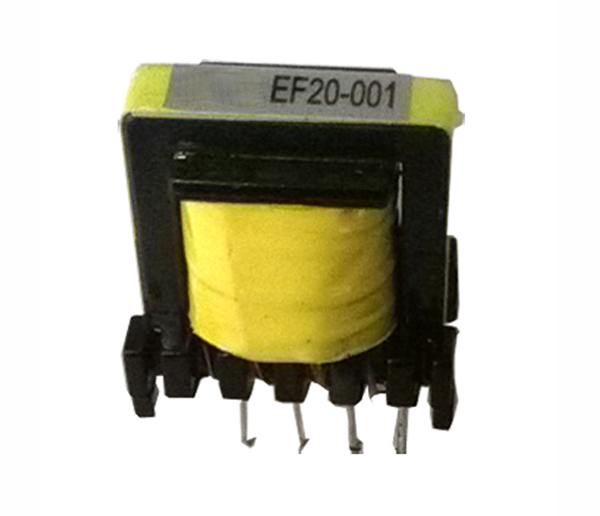

EFD-20
|
10
|
9.4
|
25.3
|
27.7
|
3.75
|
21.7
|
2
|
|
EFD-20
|
12
|
9.7
|
24
|
26.8
|
3.0
|
20
|
1
|
|

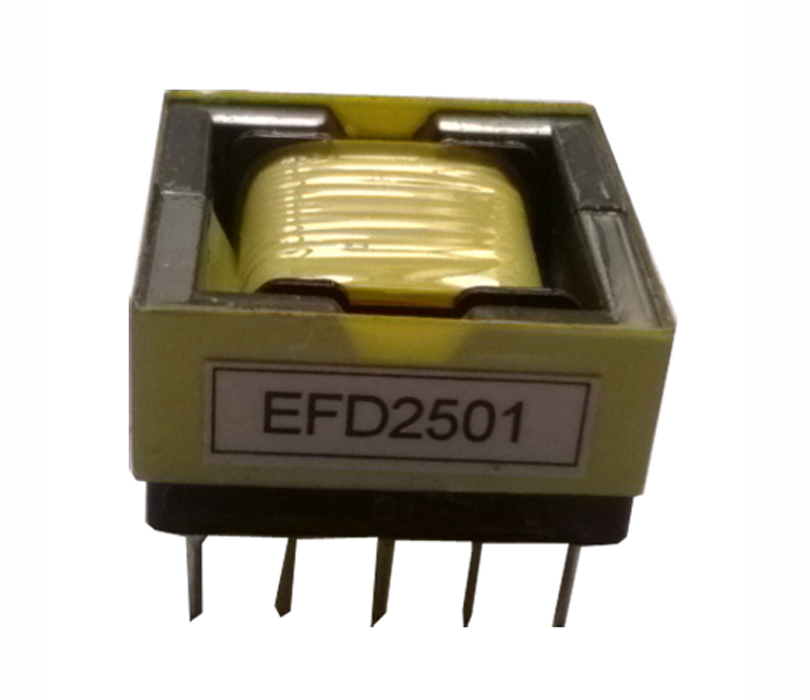

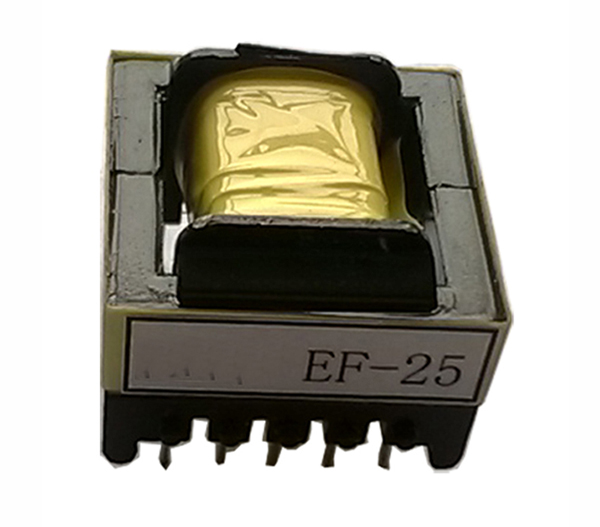

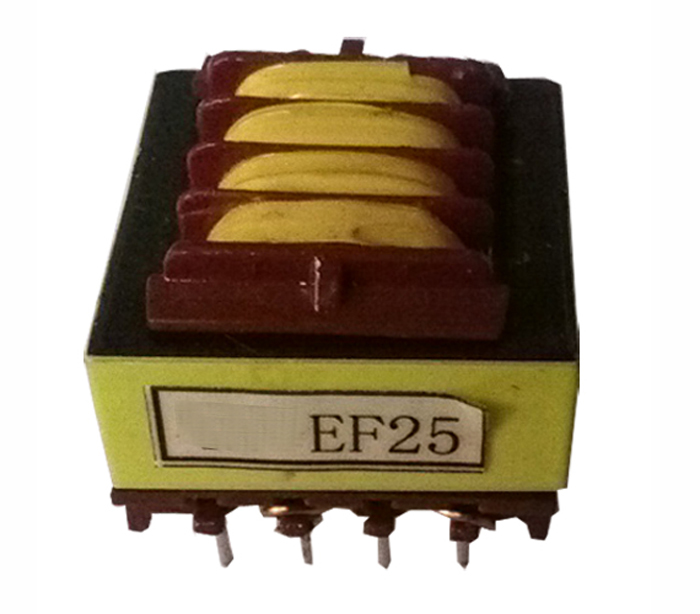

EFD-25
|
10
|
13.4
|
29.7
|
35.4
|
5
|
25
|
2
|
|
EFD-25
|
10
|
12.6
|
29.7
|
31.5
|
5
|
25
|
1
|
|
EFD-30
|
12
|
12.6
|
31.6
|
35.3
|
5
|
30
|
2
|
DESIGN AS CUSTOMER'S REQUESTED SPECIFICATIONS
