高频变压器EE系列High Frequency Transformer EE Series |
-
-
- 产品说明：

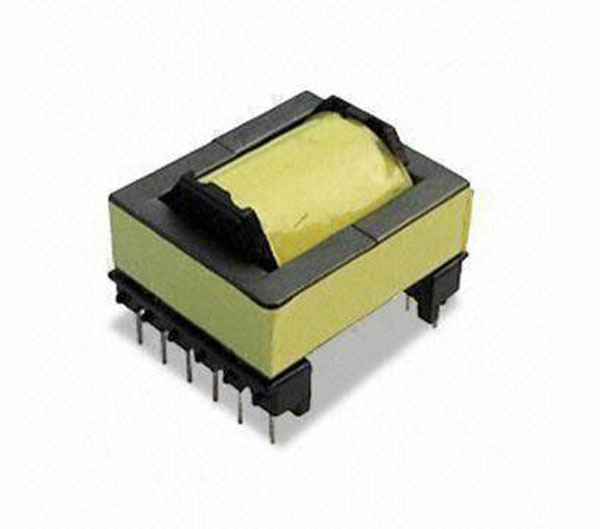

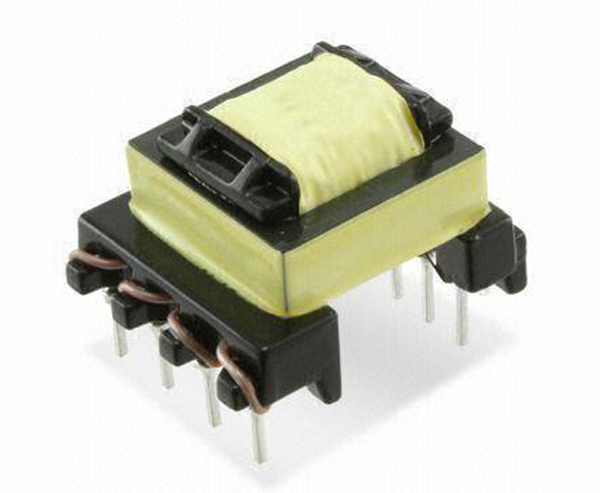

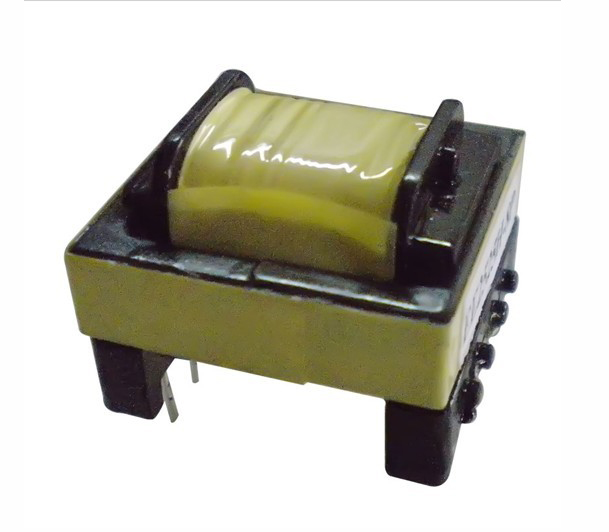

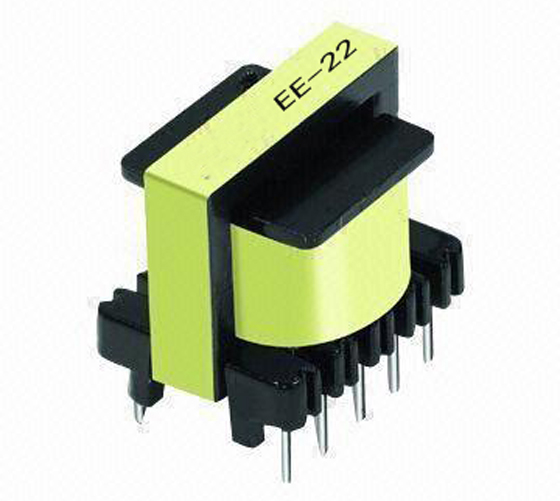

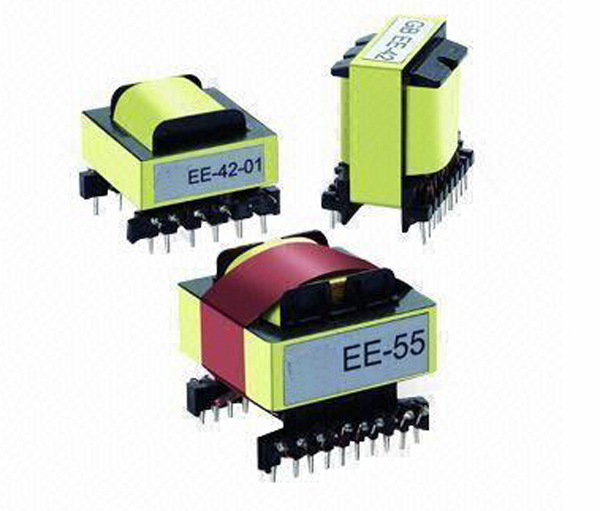

高频变压器包括 EE/ED/ER/EC/EF/EP/ETD/PQ/RM/UU/ET/UT...等类型。
Description
• Core mounted Horizontal or Vertical
• Hipot voltage：2500Vrms
• Ferrite core material
• Custom designs available
Applications
• Rate current @40℃ TYP temperature rise
• Ideally used as common mode noise filter for TV,VCR,
Switching power supply,NC machine,PC&PC related
advice,measurement and control unit
|
PART NO.
|
TERMINAL PINS
|
Dimensions in mm (inches)
|
|
A
|
B
|
C+/-0.5
|
D+/-0.5
|
E+/-0.5
|
F
|
TYPE
|
|

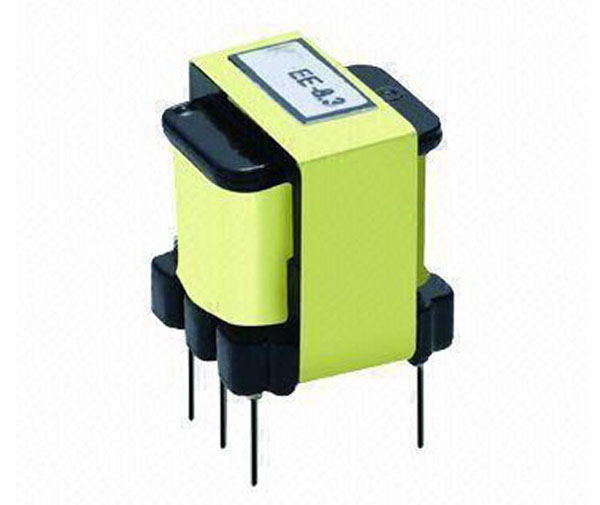

EE-8.3
|
6
|
8
|
8
|
6
|
4
|
2.5
|
8.3
|
V
|
|

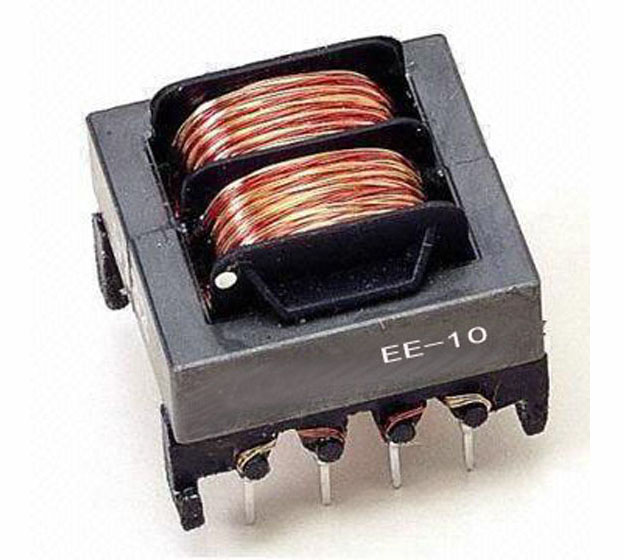

EE-10
|
8
|
11.5
|
10.2
|
8
|
4
|
2.5
|
10.2
|
V
|
|
EE-13
|
10
|
12
|
12.5
|
8.5
|
4
|
2.5
|
13
|
V
|
|

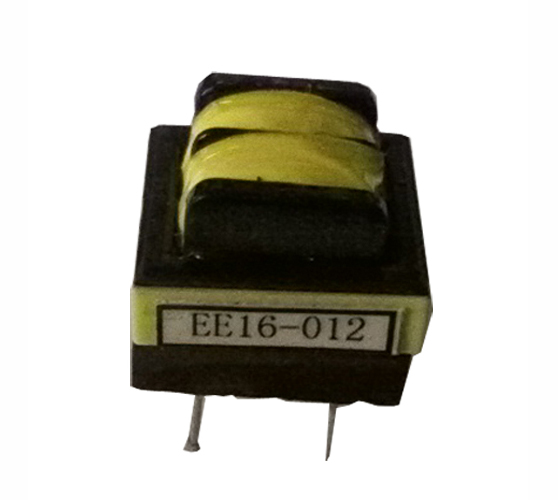

EE16-1
|
6
|
14.8
|
13.3
|
9
|
4
|
3
|
16
|
V
|
|
EE-16-2
|
10
|
15.4
|
13
|
10.5
|
4
|
3.2
|
17.1
|
V
|
|
EE-16
|
10
|
28.5
|
16
|
12.3
|
4
|
4.3
|
21.9
|
V
|
|
EE-19-1
|
8
|
17.6
|
16
|
10
|
4
|
5
|
19
|
V
|
|
EE-19-2
|
10
|
17.2
|
16.2
|
13
|
4
|
3.9
|
20
|
V
|
|
EEL-19
|
10
|
31.5
|
16
|
10.5
|
4
|
4
|
21.1
|
V
|
|
EEL-19-1
|
10
|
15.6
|
30
|
24.1
|
4
|
3.5
|
21
|
H
|
|

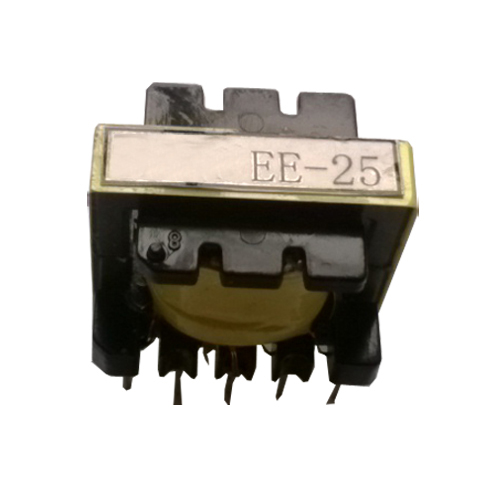

EE-25-1
|
6
|
20
|
18.2
|
12.5
|
4
|
6.3
|
25.2
|
V
|
|
EE-25-2
|
8
|
21.7
|
17.5
|
12.6
|
4
|
5
|
25.2
|
H
|
|
EE-25-3
|
10
|
22.2
|
25
|
15.4
|
4
|
5
|
26.1
|
H
|
|
EEL-25
|
8
|
35.3
|
17.5
|
12.5
|
4
|
5
|
25.2
|
V
|
|
EE-30
|
10
|
21
|
29.2
|
25.2
|
4
|
5
|
30
|
H
|
|
EE-40
|
14
|
27.6
|
30.5
|
25.8
|
4
|
5
|
40
|
H
|
|
EE-42/15-1
|
12
|
33.8
|
44
|
35.5
|
4
|
5
|
42
|
H
|
|
EE-42/15-2
|
16
|
41.3
|
48
|
37.7
|
4
|
5
|
42
|
H
|
|
EE-42/15-3
|
18
|
48.7
|
32
|
27.5
|
4
|
5
|
45.1
|
V
|
|
EE-42/20-1
|
12
|
45
|
39.8
|
32.5
|
4
|
5
|
42
|
V
|
|
E-42/20-2
|
16
|
44.2
|
50
|
37.8
|
4
|
5
|
42.2
|
H
|
|
EE-42/20-3
|
18
|
44.1
|
37
|
27.3
|
4
|
5
|
45.3
|
V
|
|
EE-55
|
20
|
50
|
50
|
45.5
|
4
|
5
|
55
|
H
|
|
EE-65
|
16
|
55.2
|
51.8
|
45
|
4
|
5
|
65
|
H
|
|
TYPE : H ->HORIZONTAL TYPE V ->VERTICAL TYPE
|
