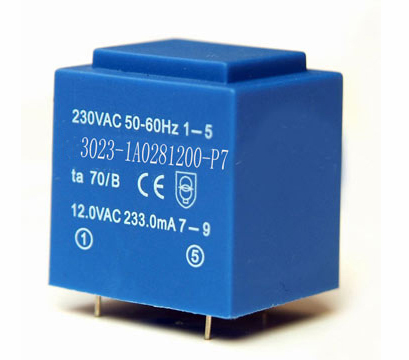

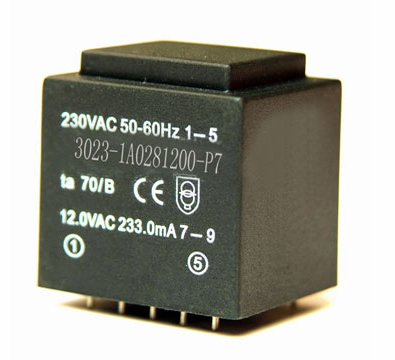

PART NO

Primary

[V]

Secondary

[V]

Current

[mA]

Pin

No-Load Voltage

[V]

Schematic No.

3023-E-0280-060-S

230v~

6

466.6

1+5/7+9

8.5

1

3023-E-0280-090-S

230v~

9

311.1

1+5/7+9

12.8

1

3023-E-0280-120-S

230v~

12

233.3

1+5/7+9

17.2

1

3023-E-0280-150-S

230v~

15

186.6

1+5/7+9

21.5

1

3023-E-0280-180-S

230v~

18

155.5

1+5/7+9

25.7

1

3023-E-0280-240-S

230v~

24

116.6

1+5/7+9

34.2

1

3023-E-0280-060-D

230v~

2× 6

2×233.3

1+5/6+7-9+10

2×8.5

2

3023-E-0280-075-D

230v~

2× 7.5

2×186.6

1+5/6+7-9+10

2×10.7

2

3023-E-0280-090-D

230v~

2× 9

2×155.5

1+5/6+7-9+10

2×12.8

2

3023-E-0280-120-D

230v~

2×12

2×116.6

1+5/6+7-9+10

2×17.2

2

3023-E-0280-150-D

230v~

2×15

2×93.3

1+5/6+7-9+10

2×21.5

2

3023-E-0280-180-D

230v~

2×18

2×77.7

1+5/6+7-9+10

2×25.7

2

3023-E-0280-240-D

230v~

2×24

2×58.3

1+5/6+7-9+10

2×34.2

2

3023-U-0280-060-S

115v~

6

466.6

1+5/7+9

8.5

1

3023-U-0280-090-S

115v~

9

311.1

1+5/7+9

12.8

1

3023-U-0280-120-S

115v~

12

233.3

1+5/7+9

17.2

1

3023-U-0280-150-S

115v~

15

186.6

1+5/7+9

21.5

1

3023-U-0280-180-S

115v~

18

155.5

1+5/7+9

25.7

1

3023-U-0280-240-S

115v~

24

116.6

1+5/7+9

34.2

1

3023-U-0280-060-D

115v~

2× 6

2×233.3

1+5/6+7-9+10

2×8.5

2

3023-U-0280-075-D

115v~

2× 7.5

2×186.6

1+5/6+7-9+10

2×10.7

2

3023-U-0280-090-D

115v~

2× 9

2×155.5

1+5/6+7-9+10

2×12.8

2

3023-U-0280-120-D

115v~

2×12

2×116.6

1+5/6+7-9+10

2×17.2

2

3023-U-0280-150-D

115v~

2×15

2×93.3

1+5/6+7-9+10

2×21.5

2

3023-U-0280-180-D

115v~

2×18

2×77.7

1+5/6+7-9+10

2×25.7

2

3023-U-0280-240-D

115v~

2×24

2×58.3

1+5/6+7-9+10

2×34.2

2

3023-U2-0280-060-S

2*115v~

6

466.6

1+2-4+5/7+9

8.5

3

3023-U2-0280-090-S

2*115v~

9

311.1

1+2-4+5/7+9

12.8

3

3023-U2-0280-120-S

2*115v~

12

233.3

1+2-4+5/7+9

17.2

3

3023-U2-0280-150-S

2*115v~

15

186.6

1+2-4+5/7+9

21.5

3

3023-U2-0280-180-S

2*115v~

18

155.5

1+2-4+5/7+9

25.7

3

3023-U2-0280-240-S

2*115v~

24

116.6

1+2-4+5/7+9

34.2

3

3023-U2-0280-060-D

2*115v~

2× 6

2×233.3

1+2-4+5/6+7-9+10

2×8.5

4

3023-U2-0280-090-D

2*115v~

2× 9

2×155.5

1+2-4+5/6+7-9+10

2×12.8

4

3023-U2-0280-120-D

2*115v~

2×12

2×116.6

1+2-4+5/6+7-9+10

2×17.2

4

3023-U2-0280-150-D

2*115v~

2×15

2×93.3

1+2-4+5/6+7-9+10

2×21.5

4

3023-U2-0280-180-D

2*115v~

2×18

2×77.7

1+2-4+5/6+7-9+10

2×25.7

4

3023-U2-0280-240-D

2*115v~

2×24

2×58.3

1+2-4+5/6+7-9+10

2×34.2

4
